Winnerwell® Angled Flashing Kit

SAABUMAS MÜÜKI

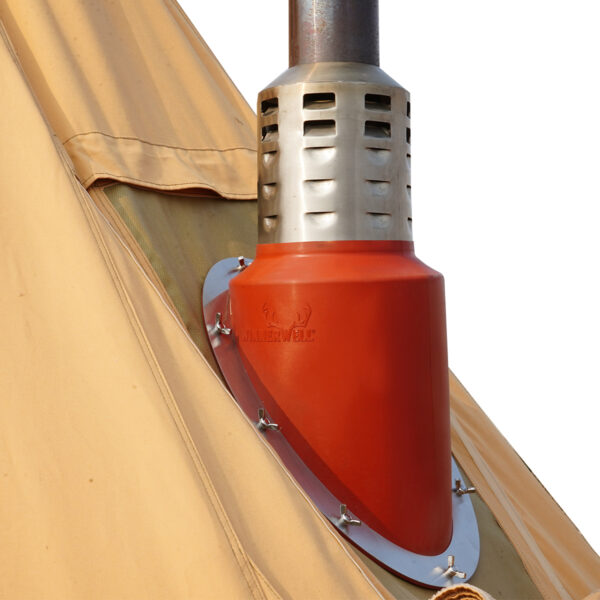

Designed specifically for Winnerwell® Teepee Tents, the Winnerwell® Angled Flashing Kit ensures a seamless fit with the stove jack on angled tent surfaces. Compatible with the Winnerwell® Triple-wall Heat Protector Chimney 3.5″ and the Winnerwell® Triple-wall Heat Protector Chimney for External Air M-sized Stove, this kit provides a secure, weather-tight seal, making it an essential accessory for safe and efficient stove use in outdoor camping setups.

Key Features

• Engineered for a precise fit with Winnerwell® Teepee Tents.
• Creates a secure and weatherproof seal around the chimney.
• Compatible only with Winnerwell® Triple-wall Heat Protector Chimneys.
• Made from high-quality silicone and AISI304 stainless steel for durability.

Specifications

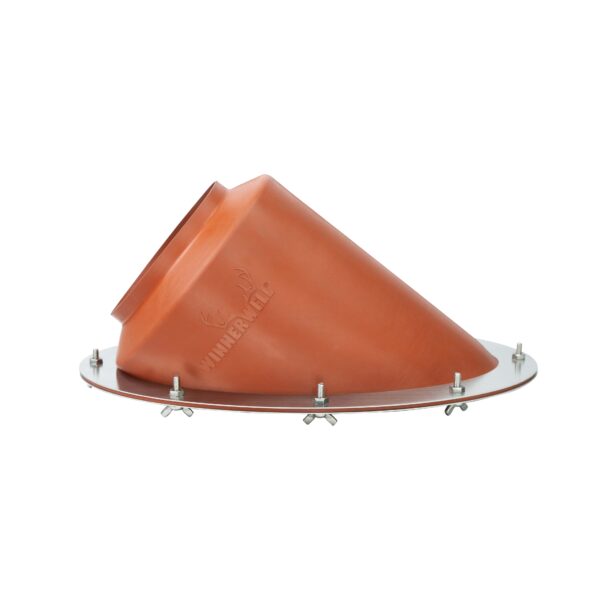

• Material: Silicone collar + AISI304 Stainless Steel rings
• Top Opening Diameter: 142mm / 5.6in
• Outer Dimensions: 399(L)mm × 273(W)mm / 15.7(L)in × 10.8(W)in
• Fixing Hole Dimensions: 222(L)mm × 207(W)mm / 8.7(L)in × 8.2(W)in
• Net Weight: 1.09kg / 2.4lbs

Usage Guidelines

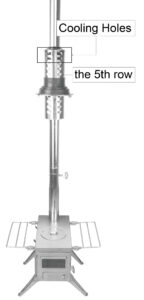

To ensure safe operation, the silicone collar must remain below the fifth row of holes at its lowest point relative to the Winnerwell® Heat Protector Chimney. For precise height adjustments, we recommend purchasing Winnerwell® Short Pipes separately.

⚠ WARNING: The Angled Flashing Kit must only be used with the Winnerwell® Triple-wall Heat Protector Chimney 3.5″ or the Winnerwell® Triple-wall Heat Protector Chimney for External Air M-sized Stove. Direct installation on a standard stove pipe may cause the silicone to melt. Additionally, the upper portion of the Heat Protector Chimney reaches high temperatures—ensure the silicone collar is not positioned near or above the upper cooling holes.
